Sump Pump Installation Guide: Keep Crawl Spaces Dry & Safe

If your crawl space has ever flooded after heavy rain or you’ve noticed dampness that just won’t go away, you’re not alone. Crawl spaces are particularly vulnerable to water damage, and once moisture takes hold, it leads to mold growth, structural issues, and rodent infestations.

Fortunately, there’s a reliable solution: sump pump installation. By collecting and pumping out excess water, a sump pump helps keep crawl spaces dry, clean, and uninviting to rodents. Whether you’re dealing with seasonal flooding or year-round dampness, installing a sump pump is one of the best investments you can make in protecting your home.

This comprehensive guide will walk you through:

• Why crawl spaces are so vulnerable to water problems
• How sump pumps work and why submersible models are best
• The role of float switches in protecting your home
• Step-by-step sump pump installation tips
• Long-term benefits of keeping your crawl space dry

Why Crawl Spaces Are at Risk

Crawl spaces sit low, often directly on soil. That makes them especially prone to collecting water, humidity, and pests.

Common Crawl Space Problems:

1. Poor Drainage Systems
   • Rainwater pools near the foundation if gutters and downspouts are clogged or misdirected.
   • Improper yard grading pushes water toward your crawl space instead of away.

1. High Groundwater Levels

1. • Homes in low-lying areas often experience water seeping up from the soil.

1. Plumbing Leaks or Condensation

1. • Even minor leaks contribute to damp conditions that worsen over time.

1. Rodent Attraction

1. • Damp crawl spaces attract mice, rats, and other pests, which use them for shelter and nesting.

1. Mold and Wood Rot

1. • Excessive moisture weakens wooden beams, reduces indoor air quality, and creates a health hazard.

Without intervention, water turns your crawl space into a breeding ground for pests and structural damage.

How a Sump Pump Solves the Problem

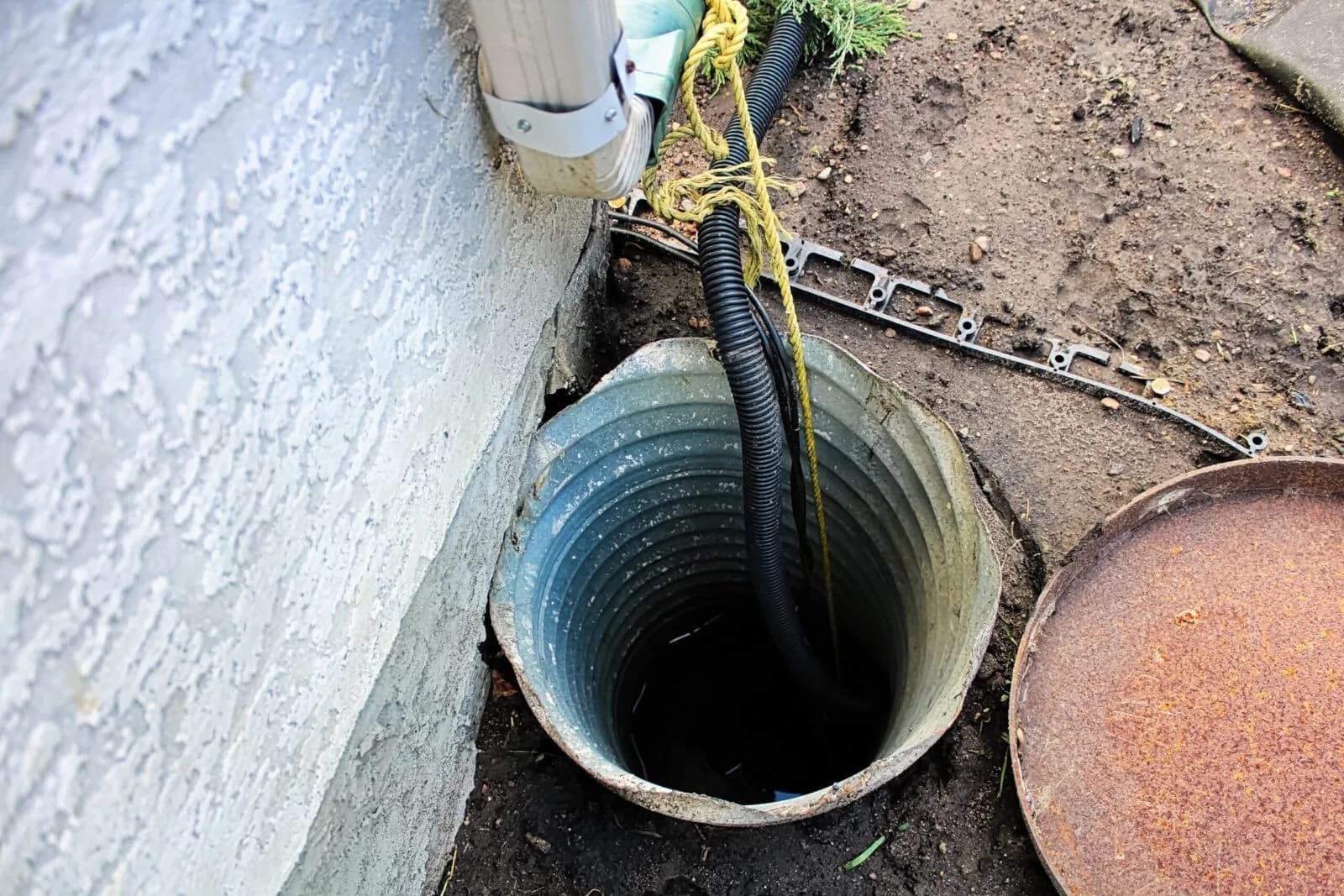

A sump pump system prevents water from collecting in your crawl space. It works by collecting groundwater into a sump pit (or basin) and then pumping it out through a discharge line, away from your foundation.

Key Benefits of Sump Pump Installation:

• Prevents Flooding – No more standing water in your crawl space.
• Stops Mold Growth – Dry conditions make it harder for mold spores to thrive.
• Discourages Rodents – Rodents prefer damp, cluttered crawl spaces; removing water makes your home less attractive to them.
• Protects Indoor Air Quality – Damp crawl spaces raise humidity levels throughout the house.
• Protects Foundation Integrity – Excess water erodes soil and puts pressure on walls, leading to cracks and instability.

Types of Sump Pumps

There are two primary sump pump designs, but for crawl spaces, one stands out.

Pedestal Sump Pumps

• Motor sits above the pit on a stand.
• Easier to service but noisier.
• Less powerful and less discreet.

Submersible Sump Pumps (Best for Crawl Spaces)

• Pump and motor are submerged inside the sump basin.
• Quieter, more powerful, and efficient.
• Last longer under heavy use.
• Safer choice for enclosed crawl spaces where noise and durability matter.

Most homeowners choose submersible sump pumps for their power, longevity, and ability to handle high water volumes.

The Role of Float Switches

A float switch is a critical component of any sump pump system. It automatically turns the pump on when water in the pit reaches a certain level and shuts it off once the water is pumped out.

Why Float Switches Are Essential:

• Automatic Operation – No need to manually monitor water levels.
• Prevents Burnout – Ensures the pump only runs when needed, extending its lifespan.
• Emergency Defense – Activates instantly during heavy rain or flooding.

Without a float switch, you risk either a flooded crawl space (if the pump doesn’t turn on) or a burned-out motor (if it never shuts off).

Step-by-Step Sump Pump Installation

Installing a sump pump is not a casual DIY project—it involves digging, plumbing, and electrical work. Still, here’s an overview of the process so you know what’s involved:

1. Choose the Location

• Pick the lowest point in the crawl space, where water naturally collects.
• Ensure the spot is accessible for future maintenance.

2. Dig the Sump Pit

• Typically 2–3 feet deep and about 18 inches wide.
• Line with gravel to help drainage.
• Insert a durable sump basin to hold the pump.

3. Install the Pump

• Place the submersible sump pump inside the basin.
• Attach the float switch securely.

4. Connect the Discharge Line

• Run a pipe from the pump to the outside of your home.
• Ensure the line directs water at least 10 feet away from the foundation.
• Add a check valve to prevent water from flowing back into the pit.

5. Test the System

• Pour water into the sump pit to make sure the float switch activates the pump.
• Verify water discharges correctly away from the home.

6. Seal and Secure

• Cover the sump basin with a lid to keep debris out.
• Ensure wiring is safe and up to code—use a GFCI outlet for safety.

Long-Term Benefits of a Sump Pump

When properly installed, a sump pump provides long-lasting protection that pays for itself in avoided damage.

1. Prevents Expensive Foundation Repairs

Water damage can cause foundation cracks, settling, and structural instability. Repairs often cost tens of thousands of dollars.

2. Stops Rodent Infestations at the Source

By eliminating standing water and excess humidity, sump pumps make crawl spaces less appealing to rodents, insects, and pests.

3. Protects Indoor Air Quality

Moisture in crawl spaces doesn’t stay put—it seeps into living areas. A dry crawl space means healthier air for your family.

4. Extends the Life of Insulation and Ductwork

Wet insulation and ducts in crawl spaces quickly become useless. A sump pump protects these systems, reducing energy bills.

5. Peace of Mind

With an automatic float switch and reliable pump, you don’t have to worry every time it rains.

Professional Installation vs. DIY

While DIY is possible for handy homeowners, most people benefit from hiring a professional for sump pump installation.

• DIY Challenges: Requires digging, plumbing, and electrical knowledge. Mistakes can lead to improper drainage or safety hazards.
• Professional Benefits: Correct sizing, waterproofing, and code-compliant installation. Many pros also offer warranties.

Maintenance Tips for Sump Pumps

Even the best sump pump requires care. Regular maintenance extends its lifespan and ensures reliability.

1. Test Quarterly – Pour water into the basin to confirm float switch activation.
2. Clean the Pit – Remove dirt, gravel, and debris from the basin.
3. Inspect the Discharge Line – Ensure it’s clear and not frozen or blocked.
4. Check the Check Valve – Prevents water from backflowing into the pit.
5. Replace Every 7–10 Years – Even the best sump pumps wear out; upgrade before failure.

Final Thoughts: A Dry Crawl Space is a Safe Crawl Space

Water and rodents may seem like separate problems, but they’re linked: moisture attracts pests, and pests exploit weaknesses. A properly installed sump pump with a float switch is one of the smartest ways to break this cycle.

By installing a submersible sump pump, you:

• Prevent costly water damage
• Protect your foundation
• Improve indoor air quality
• Keep rodents and pests out
• Enjoy long-term peace of mind

Don’t wait until the next flood or rodent infestation. A sump pump installation today ensures a dry, safe, and healthy home tomorrow.
